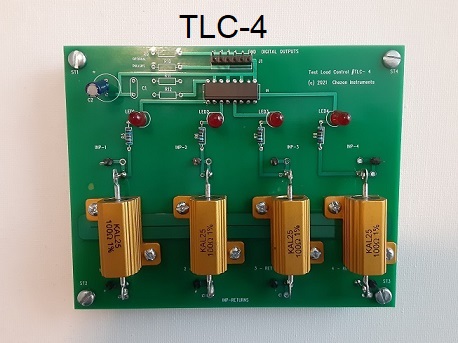

Test Load Control part number# TLC-4:

A control board design for test engineers who need to supply an heatsink resistive load to an incoming 24 VAC volts while providing an output that can hookup directly to the digital card.

The control is designed to be embedded into a fixture pan providing four heatsink resistive loads that are monitored with LEDs and digital outputs.

The control comes standard with 100-ohm 25-watt loads, however, if your application requires a different load, we should be able to substitute depending on availability and size.

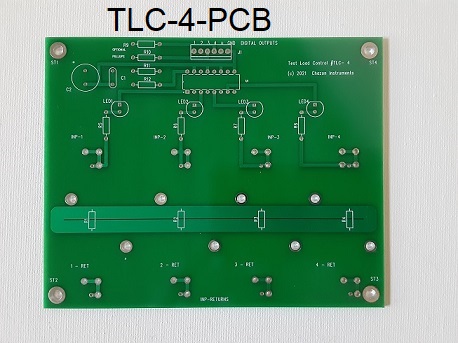

Test Load Control bare board PCB only part number# TLC-4-PCB:

Purchase the bare board only to allow the engineer decide what load values needs to be installed. Complete flexibility where the resistive load and known incoming voltage can be adjusted as needed by the test engineer.
